Up to 600kW Liquid-Cooled Ultra-Fast Charging pile

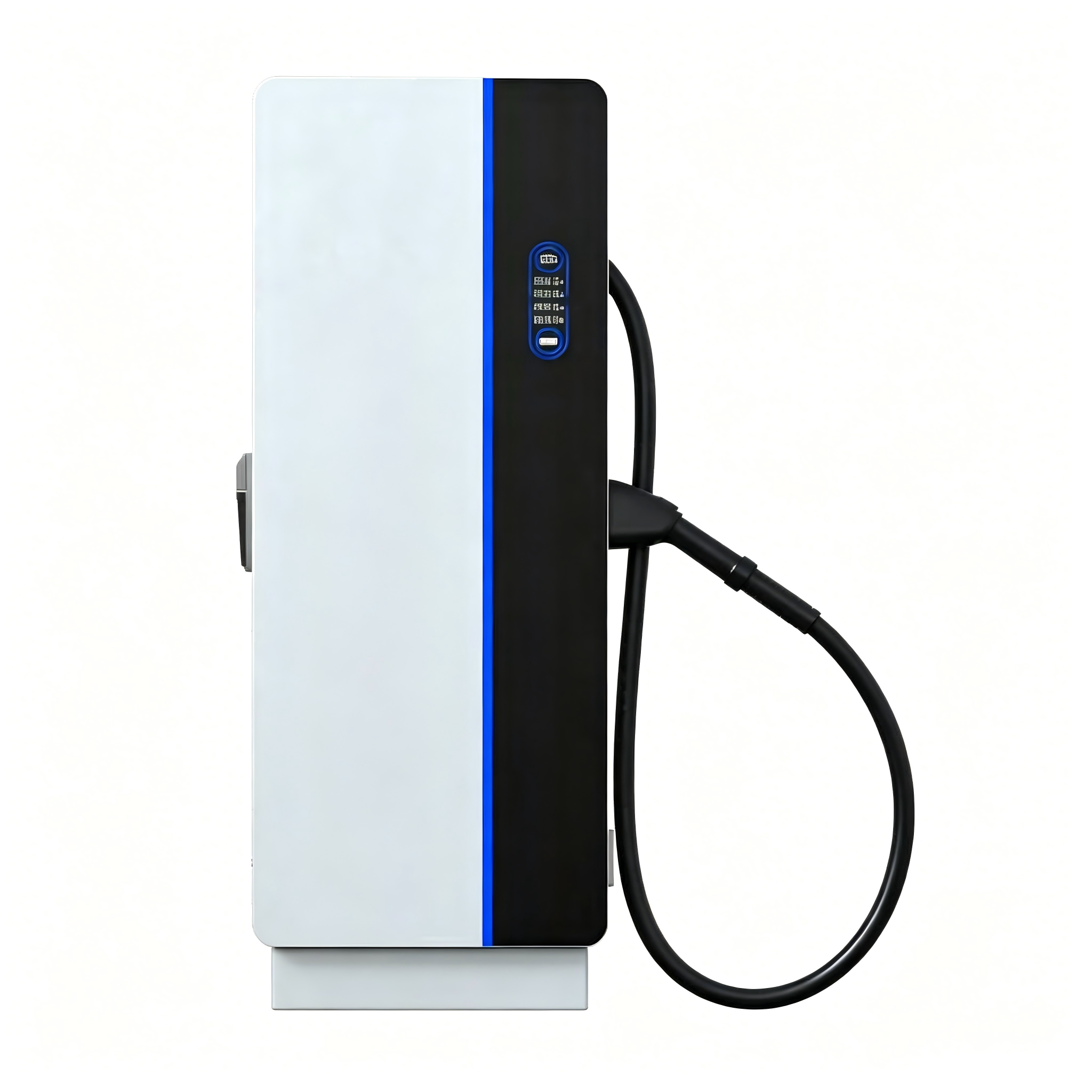

600kW Liquid-Cooled EV Charging Pile
600 kW / 600 A Liquid-Cooled Supercharging
★ Elite EV charging station dispenser with 600A output, low noise, and smart solar microgrid integration.
Compatible with most interfaces
★ Compatible with four major interfaces: CCS1, CCS2, GB/T, and Chaoji, meeting the needs of EV charging stations in most countries.
Wide-range voltage output
★ Applicable to all vehicle models, high efficiency and low heat generation.
20 Safety Guarantees/Protection rating IP54, NEMA3R
★ From emergency stop, short-circuit, ground fault, control guiding signal fault,battery reverse connection, battery group overvoltage, battery unit overvoltage, battery groupovertemperature, battery group/BMS fault, gun overtemperature, charging module overtem-perature, overcurrent, auxillary power fault, residual voltage, EV voltage fault, dispenserovertemperature, insulation fault, sample fault, busbar fault, module allocation fault, etc.
Liquid cooling low noise
★ Limits noise to under 55 dB. More than 100m communication distance for larger span area.
600kW Liquid-Cooled Ultra-Fast EV Charging pile Electrical Parameters
| Specification Sheet | |||||
| Model | DEVCU-500-02U | DEVCU-500-02E | DEVCU-600-02 | ||
| Connector Type | CCS1 | CCS2 | GB/T | ChaoJi | |
| Performance | Cable length | 5m (by default, other length on demand) | |||
| Language | ENG/CHN (by default, other languages on demand) | ||||
| Max output current (constant) | 500A | 500A | 600A | 600A | |
| Max output current (transient) | 500A | 500A | 600A | 600A | |
| Output channel | 1 | ||||
| Output power rating | 500kW | 500kW | 600kW | 600kW | |
| Output voltage range | 150-1000V | ||||
| Payment (Authentification) | Plug & Charge, QR code, VIN (IC card on demand) | ||||
| HMI | LCD&LED indicator | ||||
| Standby power | ≤15W | ||||
| communication | Network communication | Ethernet | |||

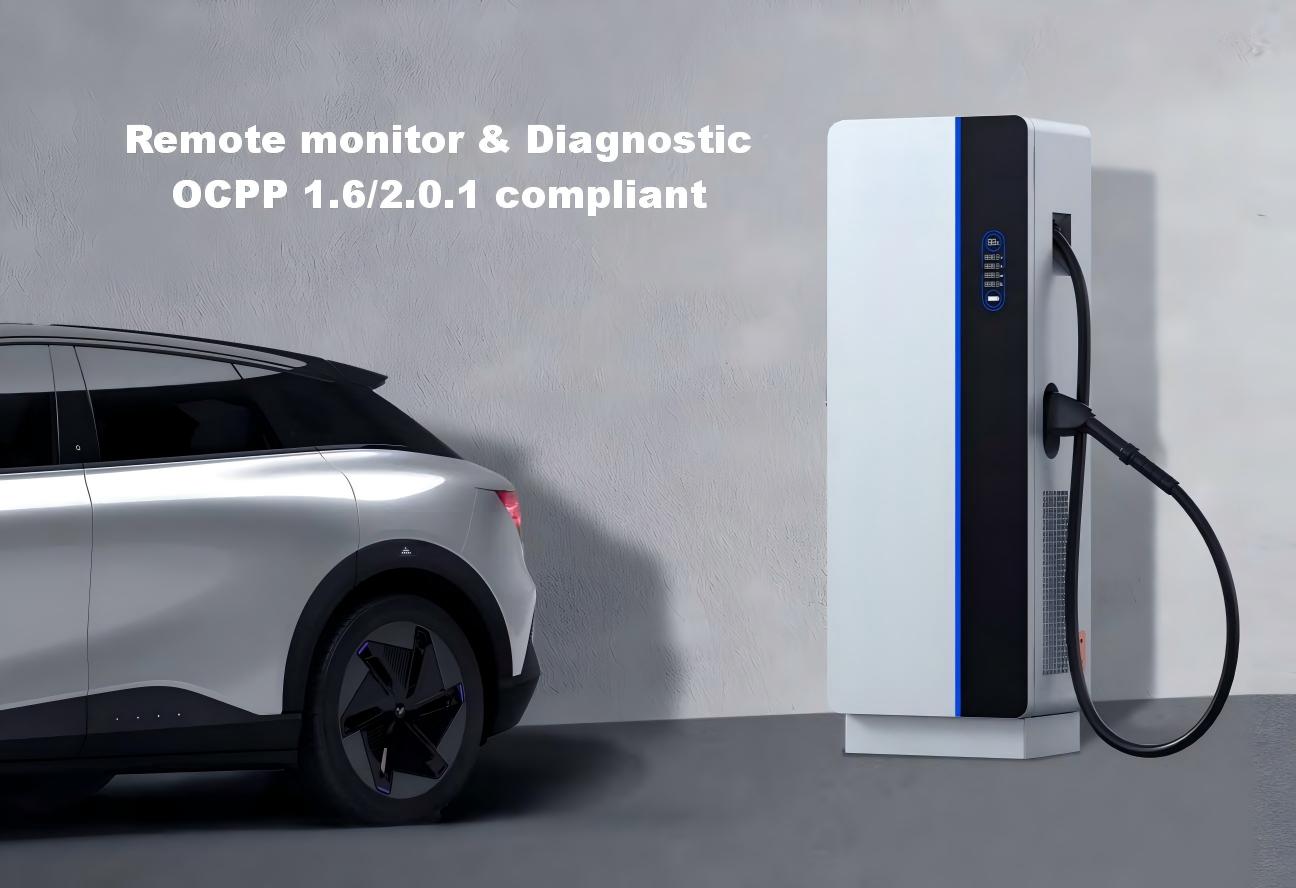

| OCPP version | 1.6/2.0.1 | 1.6/2.0.1 | / | / | |
| safety | Emergency button | Available | |||
| Enclosure material | Galvanized steel + anti-rust coating | ||||
| Protection Rating | IP54,NEMA3R | ||||
| Protection | 20 Protections from emergency stop, short-circuit, ground fault, control guiding signal fault,battery reverse connection, battery group overvoltage, battery unit overvoltage, battery groupovertemperature, battery group/BMS fault, gun overtemperature, charging module overtem-perature, overcurrent, auxillary power fault, residual voltage, EV voltage fault, dispenserovertemperature, insulation fault, sample fault, busbar fault, module allocation fault, etc. | ||||
| Cooling | Liquid cooling | ||||
| General characteristics |
Dimension(H*W*D) | 1550mm*550mm*350mm | |||
| Humidity | 20-95% Rh non-condensing | ||||
| Mounting | Floor mounted | ||||
| Noiselevel | ≤55dB | ||||
| Operational altitude | Up to 2000 m | ||||
| Operational temperature range | -20 to +50°C | ||||
| Storage temperature range | -40to+70°C | ||||
Charging pile applicable scenarios
1. Megawatt Charging Hubs (Photovoltaic, Energy Storage, and Supercharging Stations)
Suitable Locations: Corporate headquarters, industrial parks, and long-term employee parking spaces (6-9 hours).

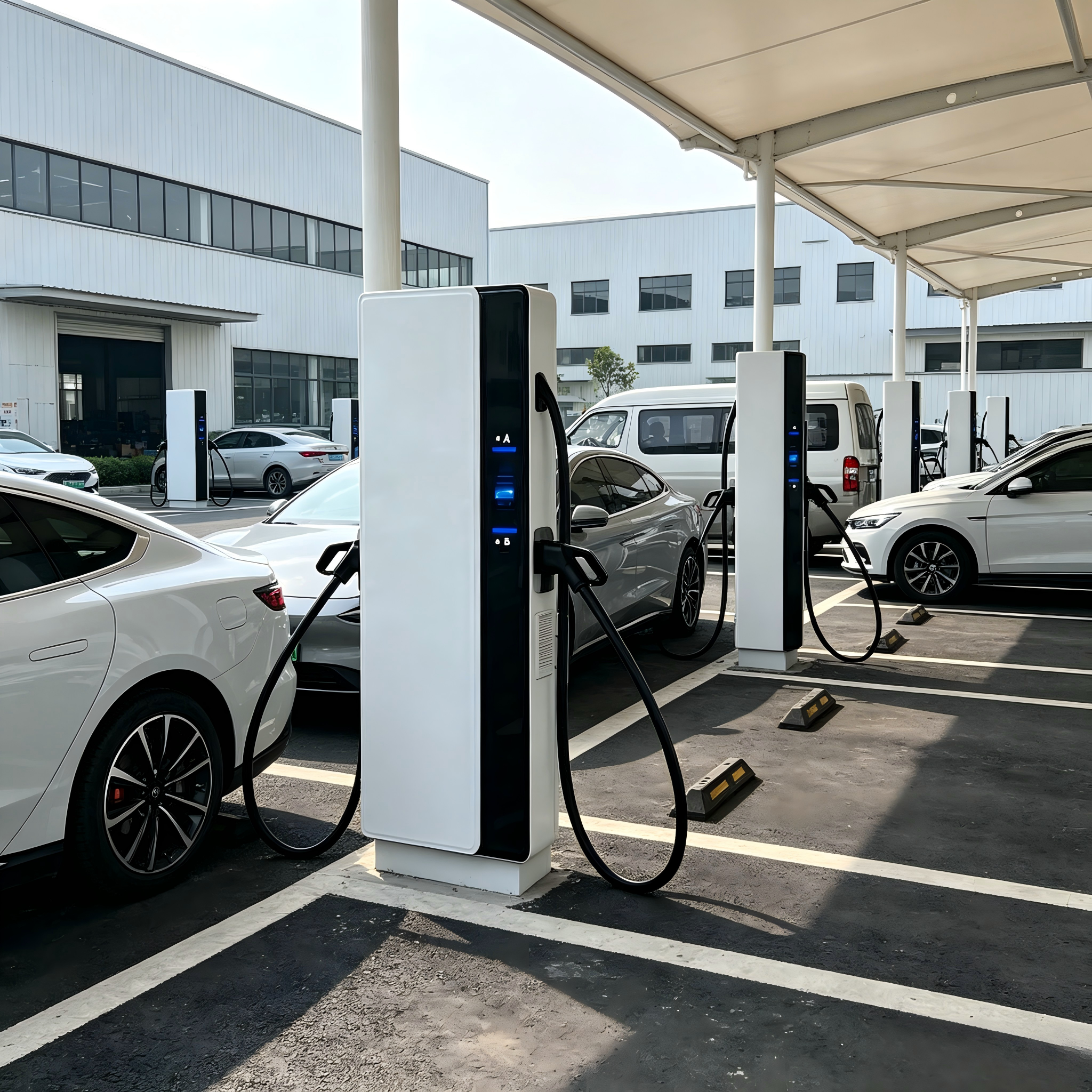

2. Workforce Destination Charging (Office Parks)

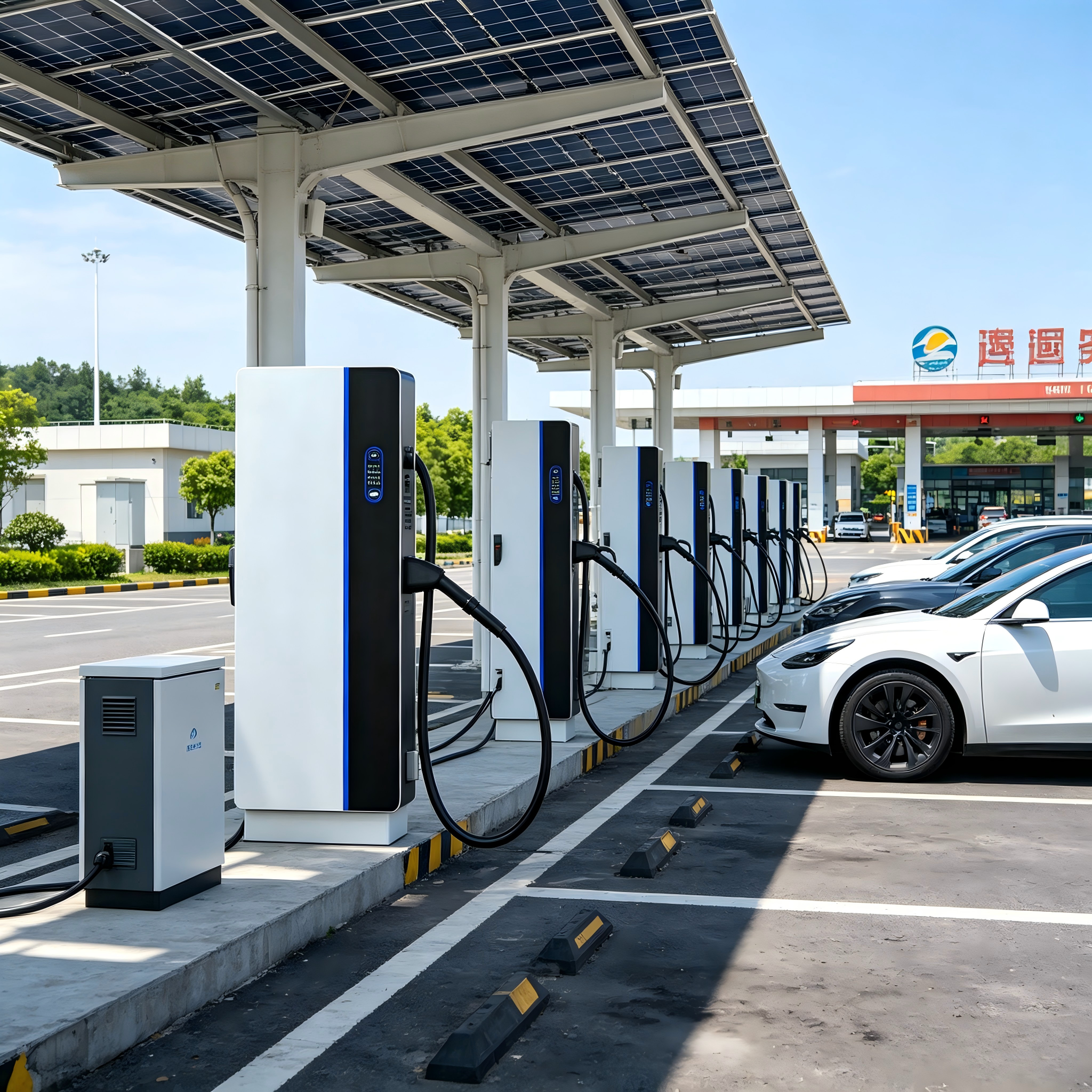

Suitable Locations: Highway service areas, heavy-duty truck logistics parks, and urban public charging stations.

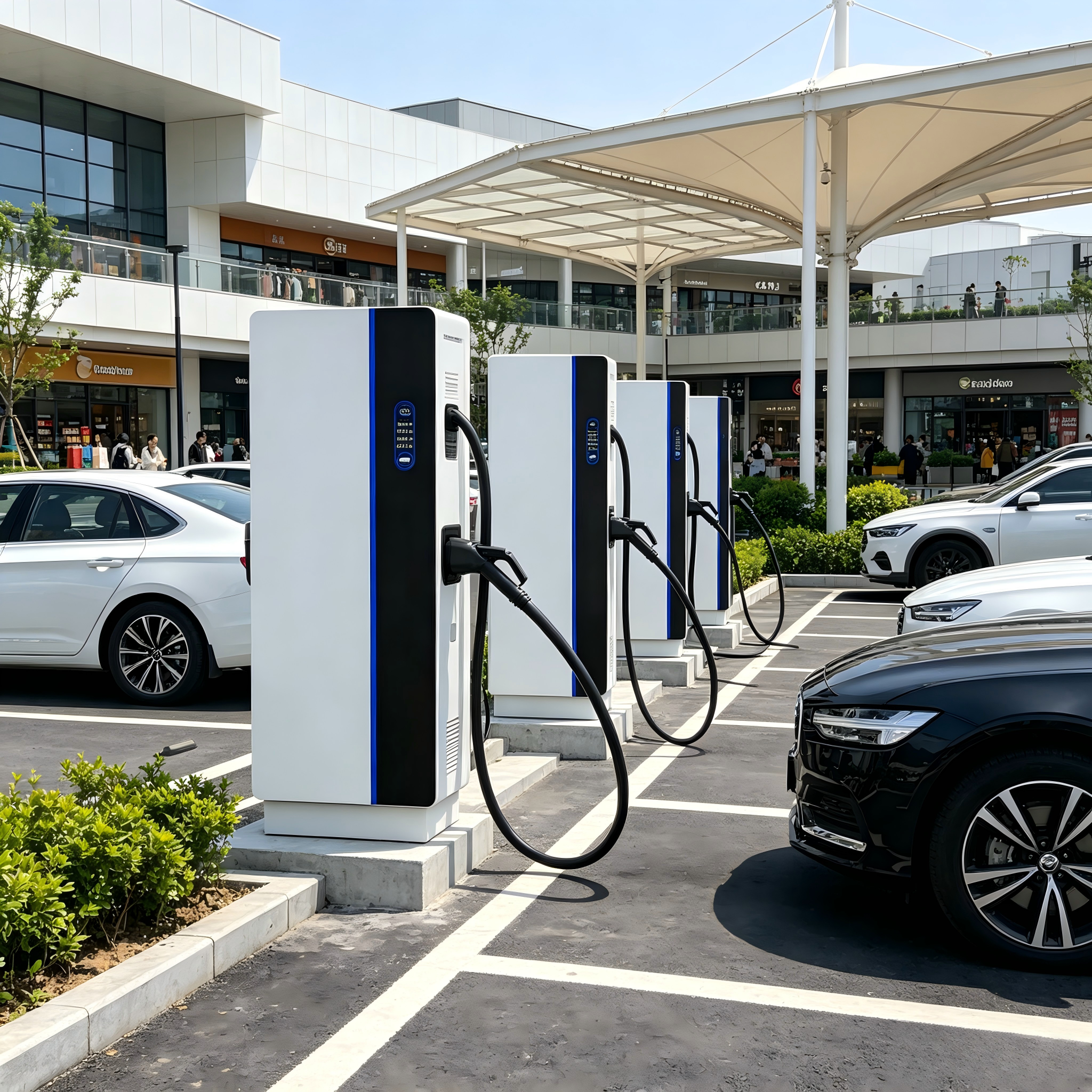

3. Urban & Retail Solutions (Shopping Malls and Commercial Complexes)
Suitable Locations: Large shopping malls, high-end hotels, commercial streets, and other short-to-medium-distance stops (1-3 hours).
Charging Pile FAQ

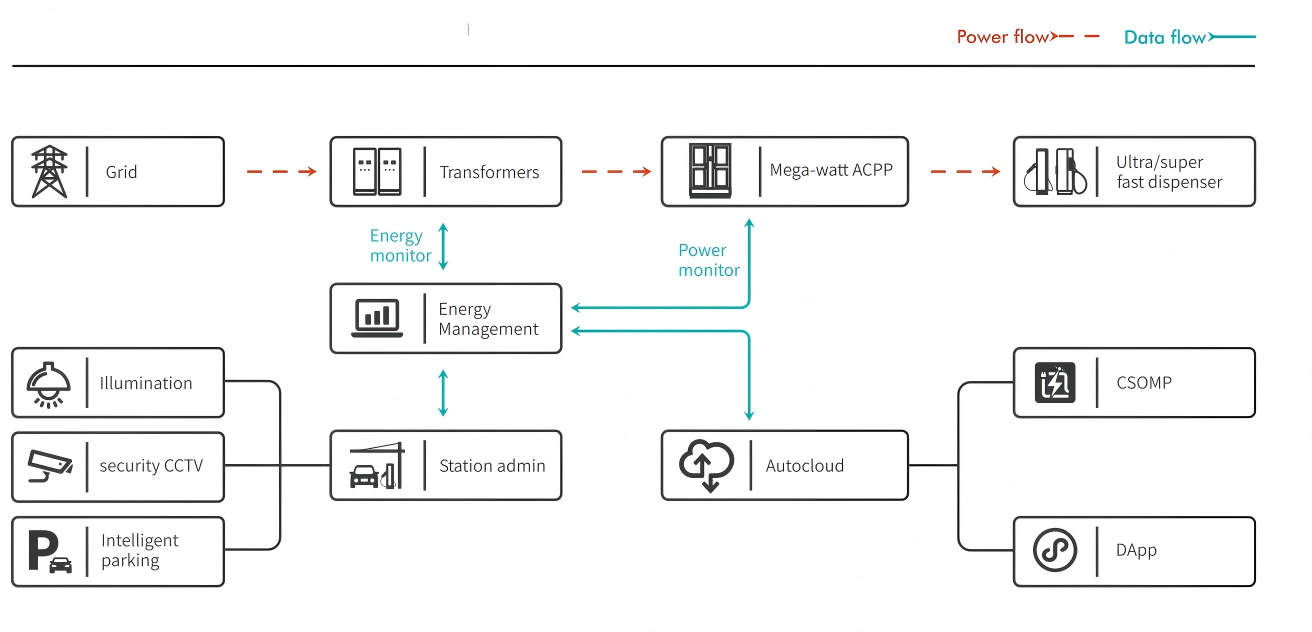

1.What does a typical Autosun charging station consist of?
2.What is the lifespan of an ACPP system?
Typically an ACPP system has a lifespan of 8 years /30,000 hrs charging time /20 million kWhenergy charged.
3.What is the service capacity of ACPP Ultra-fast charging Hub?
*About 800 EVs per MW (may slightly change with the daily mileages and energy consumption
per km/mile for various types of EVs).

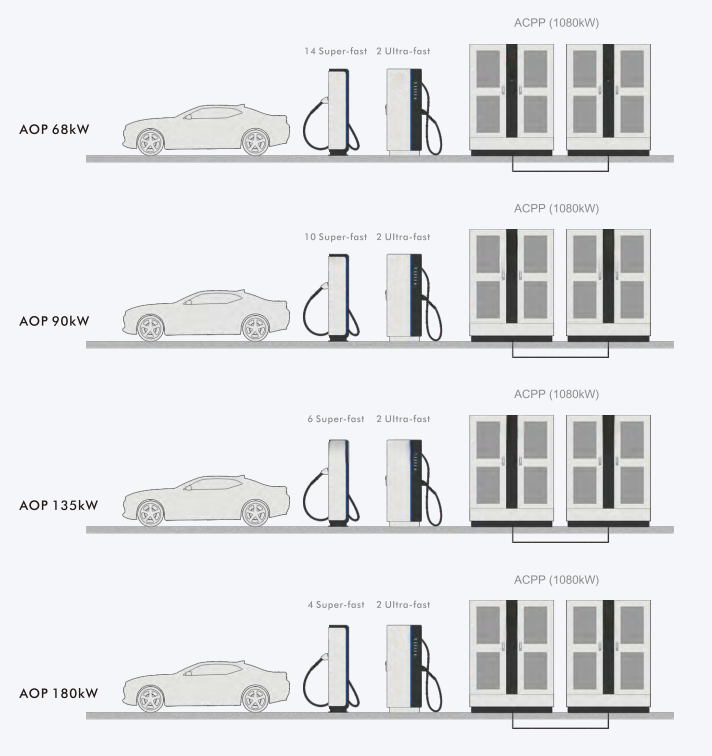

4.Are there more recommendations of how to configure the dispenserand ACPP power cabinet ratio for my charging station?
You can easily decide the configuration based on the AOP (average output power) of yourcharging station. Below are some combo recommendations for 1080 kW installed ACPP power:
Why Choose GreenPower
For All In One Solar Storage System With EV Charger, our approach involves collaborating with clients to conduct on-site inspections of each node once the internal battery cells are assembled, ensuring the reliability and performance of our commercial energy storage backup products.
At All In One Solar Storage System With EV Charger, we prioritize product design and engineering tailored for mass production. Our Quality Engineering Department comprises experienced professionals proficient in overseeing large-scale quality production processes.
At All In One Solar Storage System With EV Charger, we possess comprehensive testing equipment to ensure rigorous testing and inspection support for our products throughout both the sample and mass production phases.
Given the unique safety requirements of lithium-ion products, at All In One Solar Storage System With EV Charger, we adhere to the practice of testing the performance of each product after it has been stationary.
In cases of occasional delays in customer delivery times, the warehouse at All In One Solar Storage System With EV Charger offers complimentary storage for completed orders for a specified duration.
Drawing upon our extensive expertise in cross-border logistics, we are well-versed in China's import and export regulatory agencies at All In One Solar Storage System With EV Charger. We stand ready to aid clients with customs clearance and other associated processes.
