5120Wh Mini Power Station For Outage Backup Green Power

This versatile portable power station features a 5120Wh LiFePO4 battery, 6000W output, and 18kW peak power for heavy-duty tools. It features full IP66 weatherproofing, an integrated patented telescopic LED light, and smart App control. With 2200W AC and 1500W PV charging, it expands up to 25kWh with extra batteries, supports 5-unit parallel operation (>30kW), and enables 18kW three-phase output.

Nominal Capacity: 5120 Wh

AC Grid Input: Max.: 2200W

Peak Power: 18kW

Cycle Life: ≥ 2,000 cycles

Max. Parallel Power: > 30kW

Protection Rating: IP66

Control Method: Mobile App

Get Price

Product Detail

Product Tags

5120Wh Mini Power Station Electrical Parameters

Cell Type	LithLiFePO4
Battery capacity	5120WH
Cycle life	>2,000 cycles
Rated power	6000W
Peak power per unit	18 kW(>1s, 3x overload)
Max. parallel power	>30 kW (supports up to 5 units in parallel)
Three-phase power output	18kW (3 units connected in parallel can output 380V)
AC Mains Input	Max. 2200W
PV Input	Max. 1500W (Voltage 12–90V / Current 15A)
Expansion battery packs	Supports up to two external 10 kWh expansion battery packs
Ingress Protection Rating	IP66 (completely dust-tight, protected against powerful water jets)
Portable design	Features a pull handle and large-sized wheels，Telescopic high-brightness LED light mast

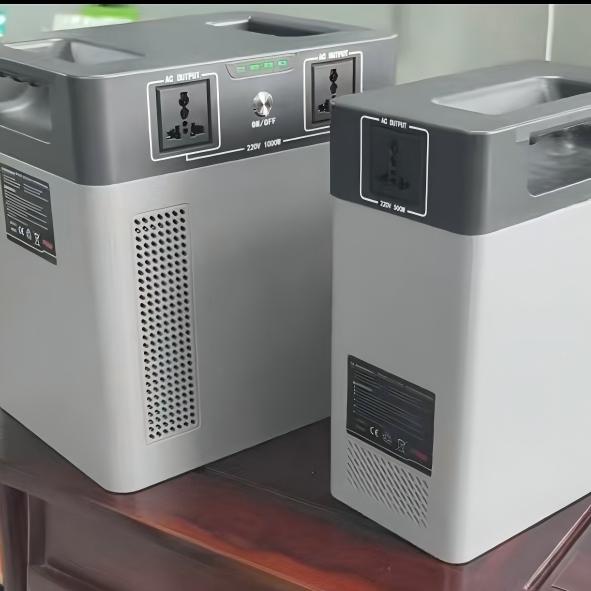

Energy storage batteries for outdoor use

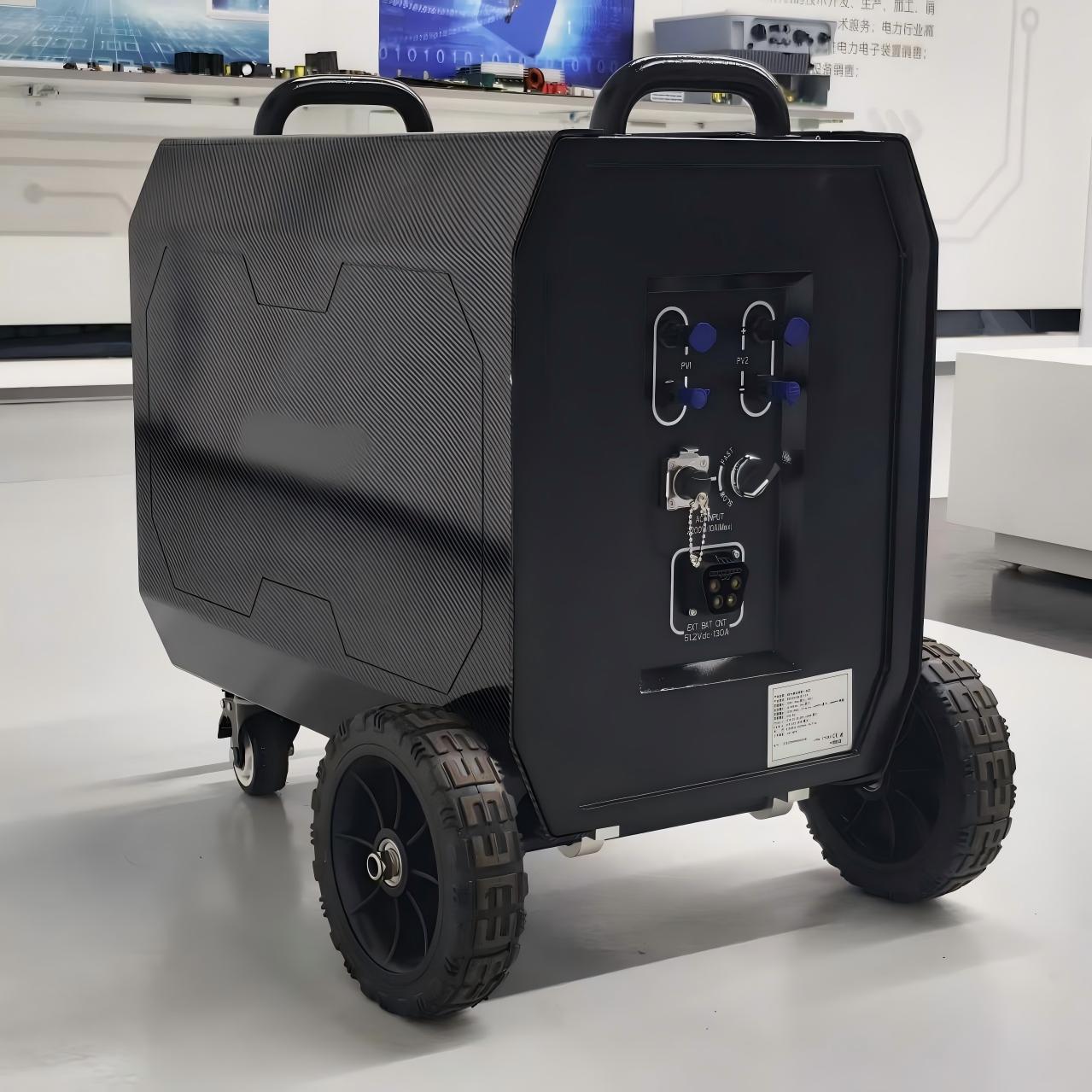

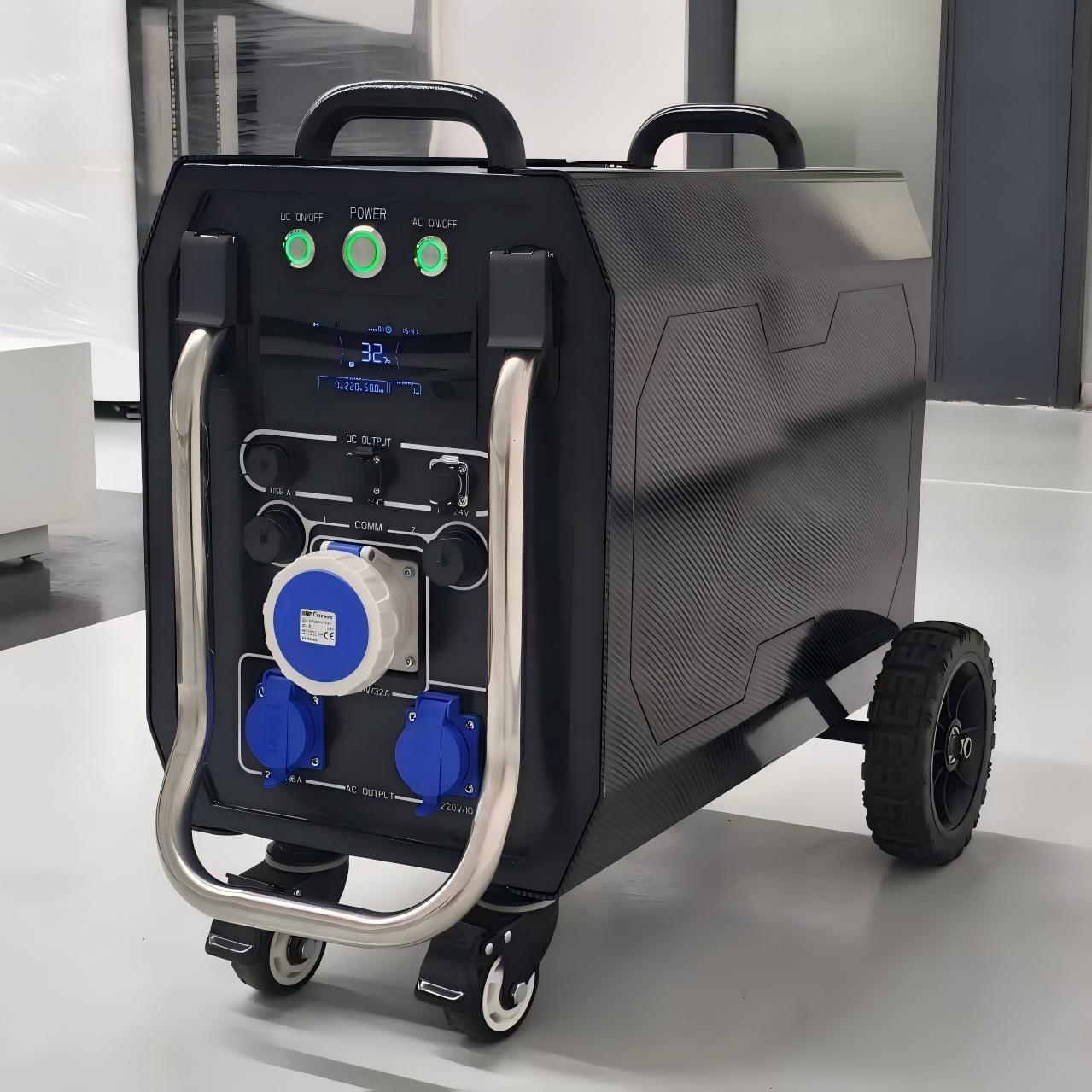

Africa Kenya, Nigeria outdoor portable energy storage battery

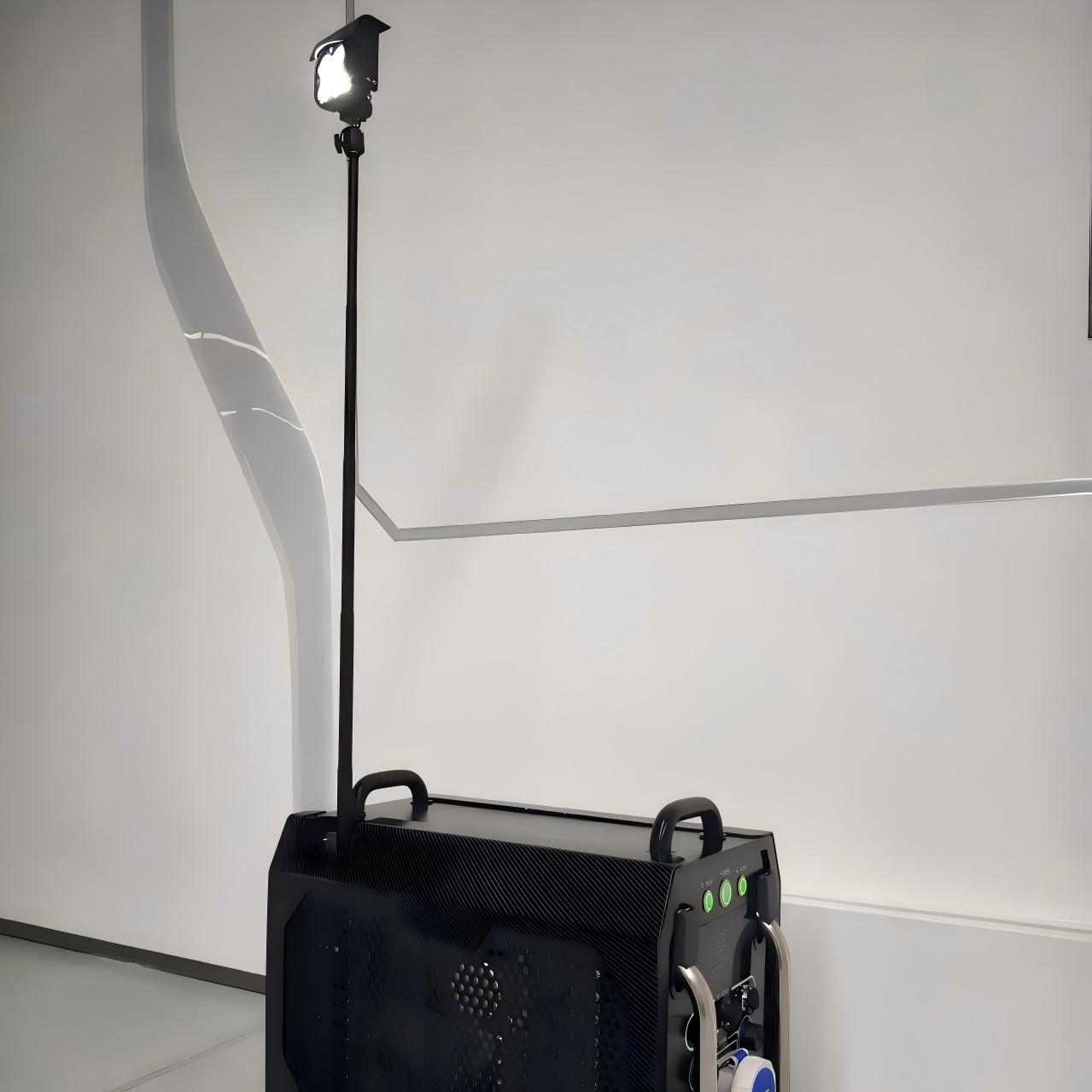

Energy storage battery gongdishiyong with LED light

Why choose 5120Wh Mini Power Station？

Unrivaled Power Peak Performance

◊6000W rated output power and 18kW peak power

◊directly drive 4 high-power electric tools at the same time

High-efficiency fast charging

◊max AC of 2200W

◊solar energy input 1500W

mini energy storage battery for outdoor use, emergency power outage, Nigeria

Exclusive Patented Retractable LED Light

IP66 all-weather protection

♦ IP66 dust-proof and waterproof

♦ Not afraid of heavy rain, strong wind and sand dust

♦ Adapt to various types of field rescue and harsh construction environments

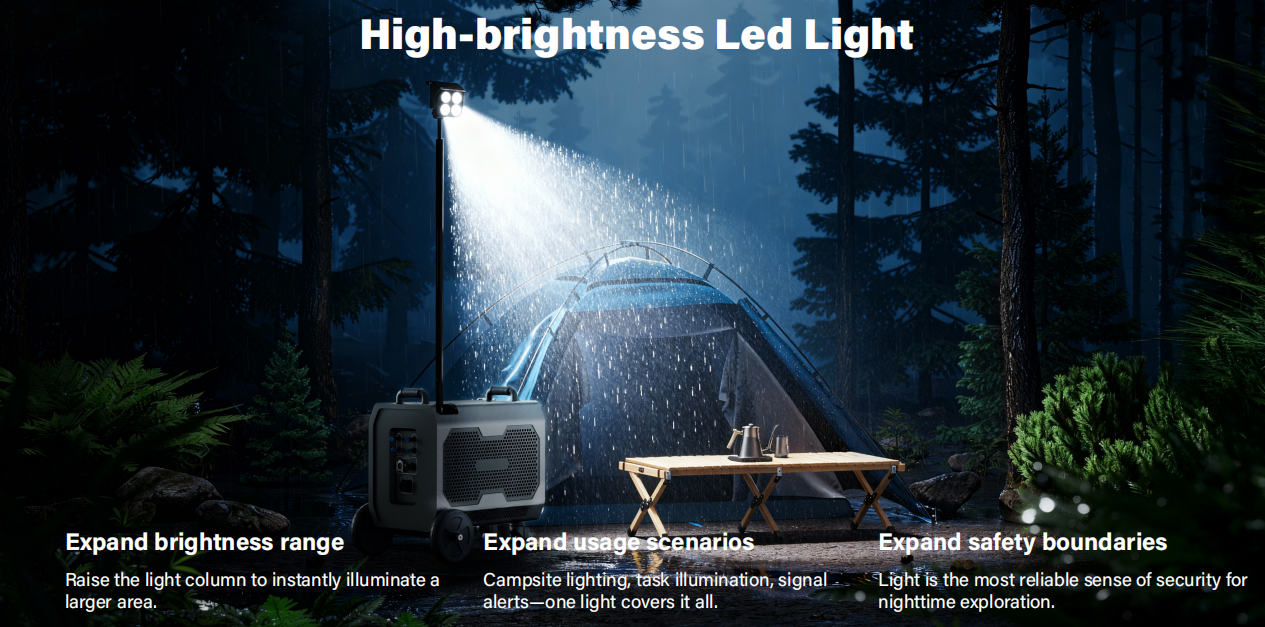

The built-in high-brightness LED light pole with adjustable height can be raised to quickly illuminate a large work area or camp without the need to carry additional lighting equipment.

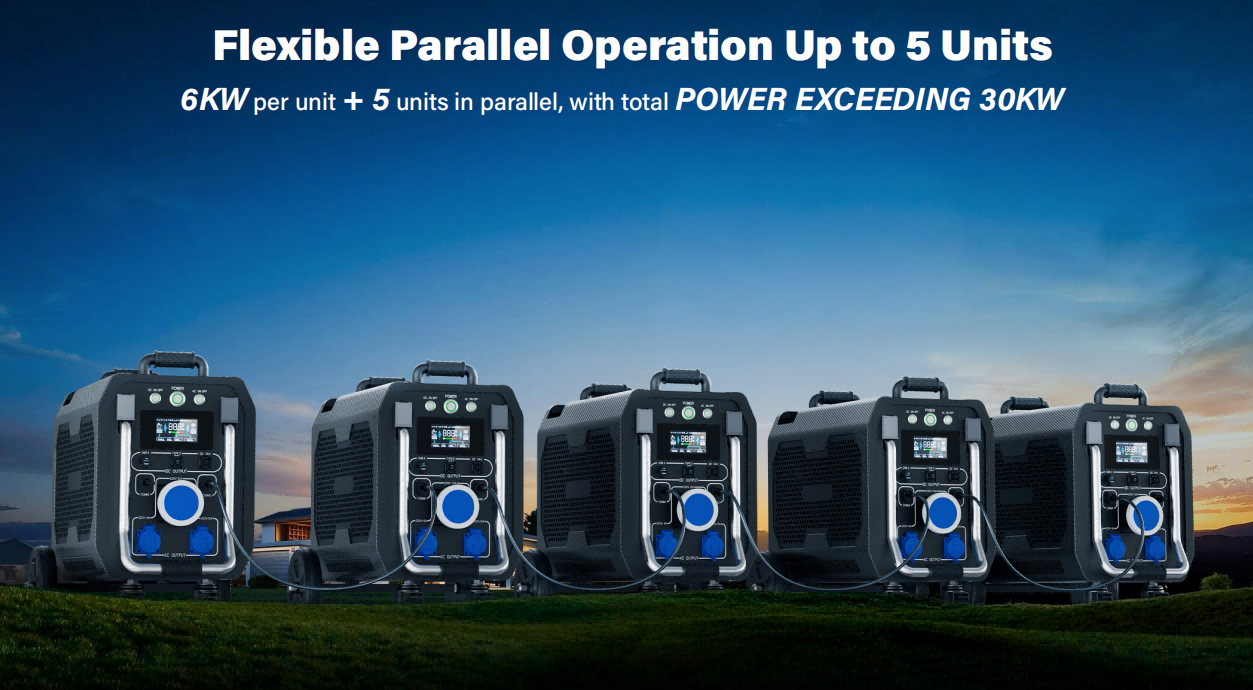

Three-phase industrial power supply

By connecting three devices in parallel, it can directly provide 18kW of 380V three-phase electrical output to drive industrial-grade heavy equipment.

Digital intelligent management:

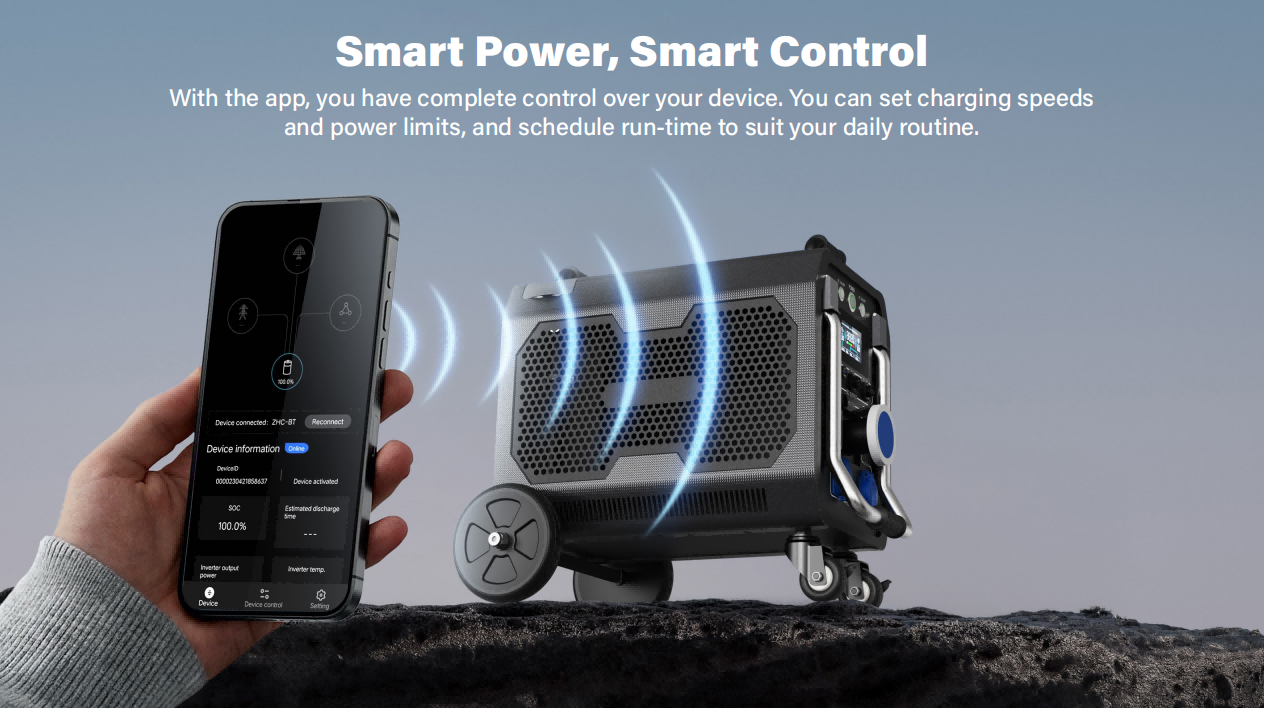

Supports remote control via mobile app, monitors SOC power, estimated discharge time and device temperature in real time, and can freely adjust charging speed and set power limits.

Outdoor portable battery with retractable LED light

Energy storage battery that supports mobile APP control

What Scenarios can 5120Wh Mini Power Station suitable for?

Multiple scenes

Urban Construction

Logging & Forestry

Emergency Rescue

Tunneling

Engineering & Industrial Work

Supplying power for outdoor woodcutting and timber operations

Supporting underground mining, excavation, and tunnel construction

Powering high-wattage heavy tools on job sites, including cutters, welding machines, breakers, angle grinders, and air compressors without requiring dedicated circuits

Powering heavy equipment on municipal and road construction sites

Electric Breaker

(1500W/12.8H)

100 Angle Grinder

(750W/16H)

100 Angle Grinder

(800W/15H)

Electric Hammer

(700W/34H)

Cutter

(2500W/9.6H)

Industrial Fan

(700W/34H)

Electric Drill

(350W/55H)

Emergency Light-ing

(300W/20.1H)

Welding Machine

(2200W/14.6H)

5120Wh Mini Power Station FAQ

Q1: What are the output power and battery capacity of the 5120Wh Mini portable power station?

A1: It features a rated output power of 6,000W and a peak power of up to 18kW . It is equipped with a built-in 5,120Wh LiFePO4 battery with a cycle life exceeding 2,000 cycles.

Q2: How safe is the 5120Wh Mini portable power station for use in harsh outdoor environments?

A2: The unit boasts an IP66 dust and water resistance rating, effectively protecting against wind, rain, sand, and dust. It also features a patented, retractable high-brightness LED light mast; the height can be flexibly adjusted for wide-area illumination or signal warnings.

Q3: What charging methods does the 5120Wh Mini portable power station support? Is it fast?

A3: It supports AC grid input (max. 2,200W) and PV solar input (max. 1,500W; 12–90V / 15A).

Q4: Can the capacity of the 5120Wh Mini portable power station be expanded, or can units be connected in parallel?

Yes. The total system capacity can be expanded to 15kWh or 25kWh. It supports parallel connection of up to 5 units, pushing the total output power beyond 30kW.

How can the 5120Wh Mini portable power station be monitored and managed remotely?

A5: Smart control and real-time monitoring of the unit's operation are available via a mobile app using Bluetooth or network connectivity.
