Energy storage + microgrid + charging pile system solution
Microgrid System

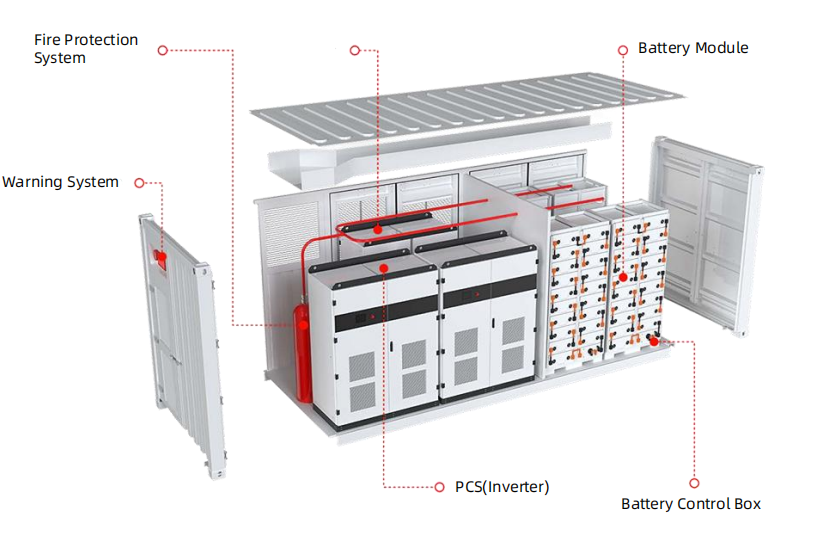

Energy storage units generally employ an integrated cabinet/container design, integrating energy storage batteries power conversion systems (PCS), energy management systems, and fire protection/temperature control units.
This solution offers a compact layout, high centralization, and simplifies system control and maintenance.
Solution Case
• Number of Planned Chargers : 6
• Average Charging Power：90kW
• Max Charging Power：200kW
• Total Installed Capacity of Charging Piles: 540kW
• Upper Electric Utility: 11kV/500kVA Transformer
• Grid Stability：Frequent Power Outages
• Hours of Operation: 8 am to 5 pm
• Electricity Facilities:Chargers operate at full capacity during working hours, no other electricity supply facilities
• Total Capacity of PV：173kWp
• Quantity of PV Modules：240 Pcs
• PV Panel Installation Type ： MatchingCarport
• Total Capacity of BESS: 1MWh
• Quantity of Cabinet BESS: 1 Set
