Commercial and industrial energy storage solutions

1MW / 1.2MWH Container ESS (Backup Power Supply)

• GP provides the integrated system solution with one stop service, including Container Energy Storage System(Battery Module + PCS + BMS), EMS, etc.;

• Modular design(1MW / 1.2MWh), easy to transport and install, support flexible expansion;

• LiFePO4 battery module, stable discharge platform, good safety performance, long cycle life;

• Three-level battery management system, support overcharge, over-discharge, over-voltage and other functional protection;

• Configure the STS for on/off-grid switching, and quickly supply power to the loads in the event of a grid outage(20ms).

• Comes with local monitoring EMS, which can remotely view system information.

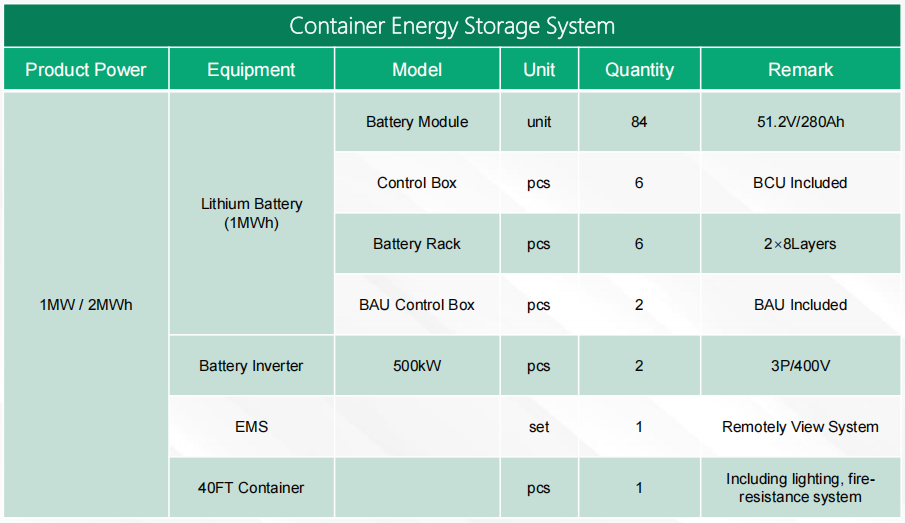

A parameter table for a containerized energy storage system, including the model and quantity of lithium battery inverters.

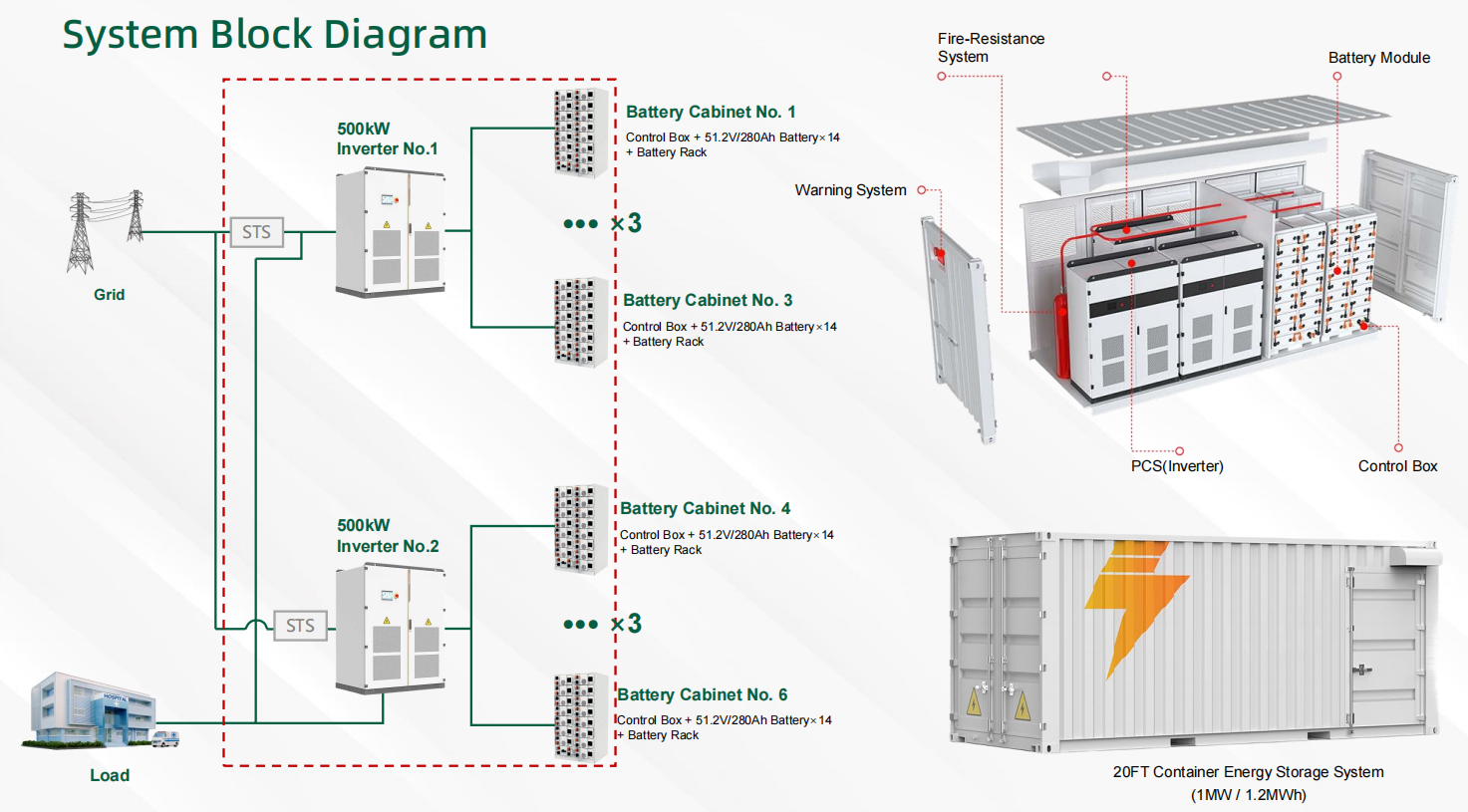

A schematic diagram of a containerized energy storage system, showing battery modules, PCS, alarm and fire protection systems.

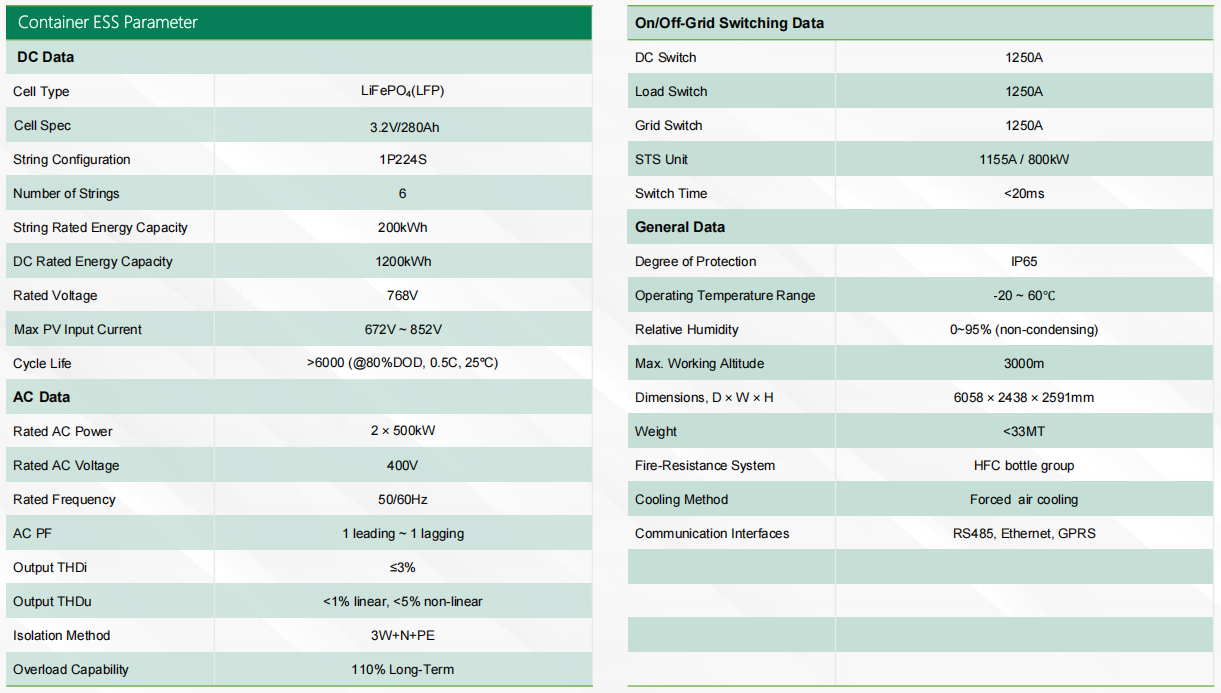

Lithium iron phosphate battery, 3.2V, 280Ah, cycle life greater than 6000 cycles.

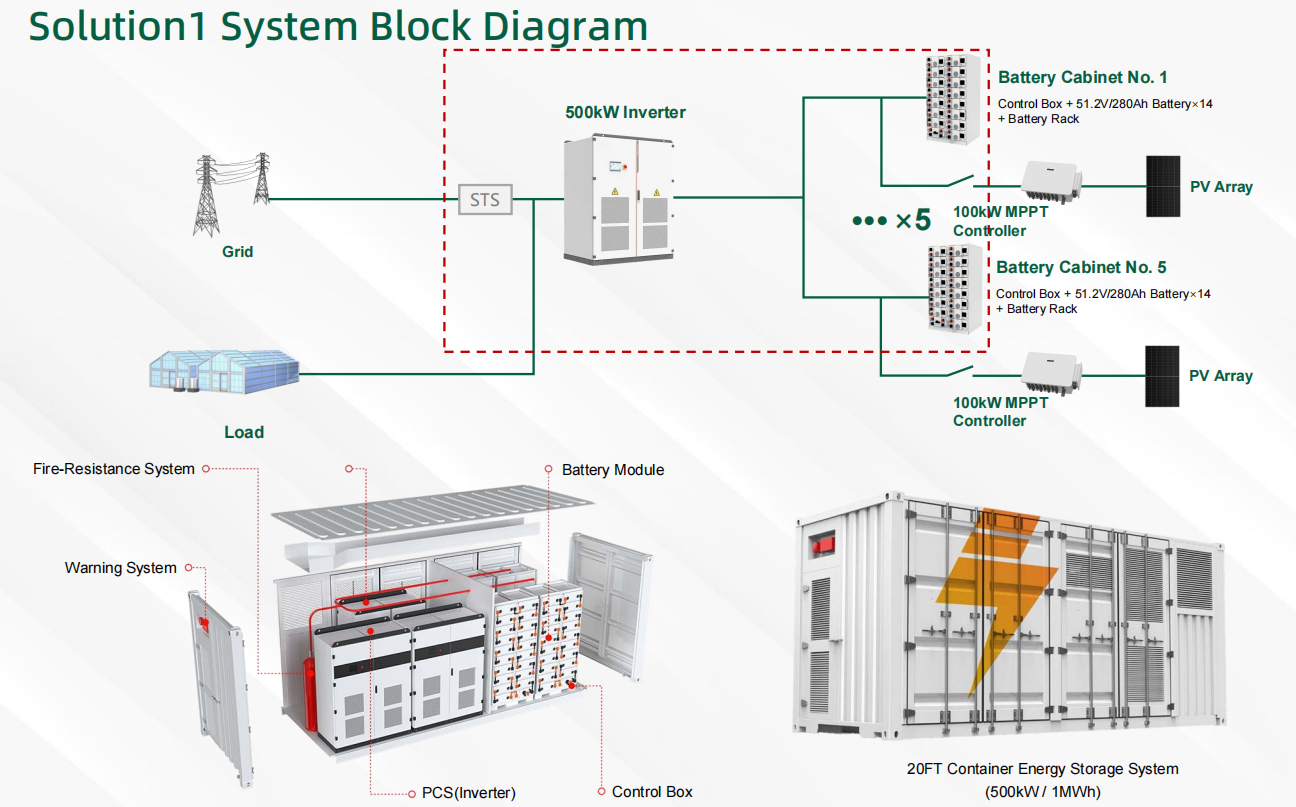

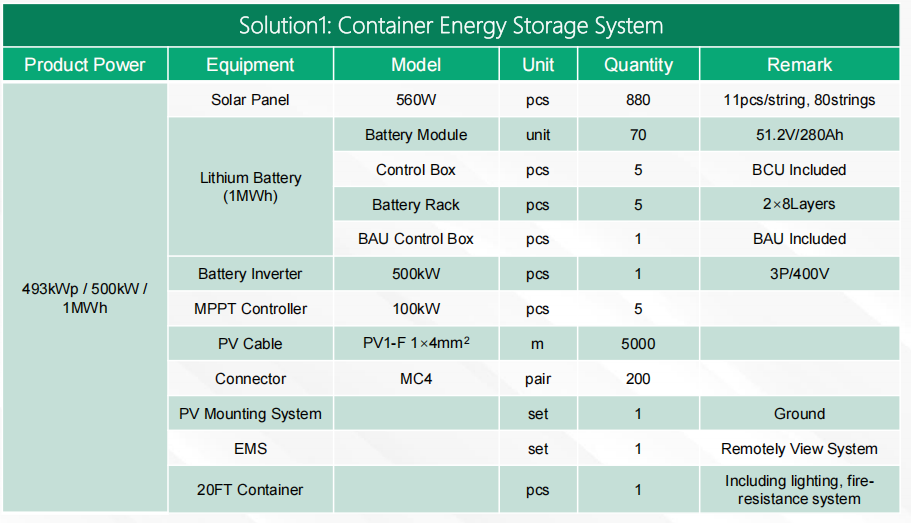

CRP — 500kW Solar with 1MWH BESS

• GP provides the integrated system solution with one stop service, including Container Energy Storage System(Battery Module + PCS + BMS), Photovoltaic, MPPT controller,EMS, etc.;

• Modular design(500kW / 1MWh), easy to transport and install, support flexible expansion;

• LiFePO4 battery module, stable discharge platform, good safety performance, long cycle life;

• The single-cluster battery rack with integrated PV DC input interface and battery control box, which automatically controls PV MPPT for battery charging protection;

• The diesel output and the output from the grid are connected to the grid interface of the storage inverter after the ATS option.

• Comes with local monitoring EMS, which can remotely view system information.
