730-750W N-type half-cell bifacial solar photovoltaic panel
Detailed parameters
Higher power generation,lower LCOE
Higher power output, higher conversion efficiency
Enhanced reliability performance
Higher bifaciality, superior energy yield

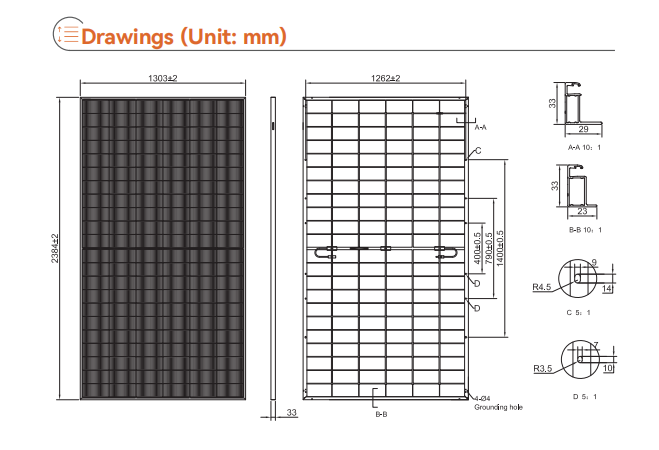

Mechanical Parameters
|
Cell Type
|
TNC
|
|
Cell Orientation
|
132 [6×22]
|
|
Dimension
|
2384±2×1303±2×33mm
|
|
Weight
|
37.3 kg
|
|
Front Glass
|
2.0 mm AR coating semi tempered glass
|
|
Rear Glass
|
2.0 mm semi tempered glass
|
|
Frame
|
Anodized aluminum alloy frame
|
|
Junction Box
|
IP68, 3 diodes
|
|
Cable
|
4.0 mm2
|
|
Cable Length
|
+400 mm, -200 mm or ±1,400 mm; length can be customized
|
|
Maximum Static
Test Load
|
5,400 Pa (front) / 2,400 Pa (rear)
|
|
Packaging (Per pallet)
|
33 pcs
|
|
Packaging
|
594 pcs per 40'HC
|
Electrical Characteristics (STC)
|
Maximum Power: Pmax [W]
|
730 | 735 | 740 | 745 | 750 |
|
Open Circuit Voltage: Voc [V]
|
49.55
|
49.65
|
49.80
|
49.95
|
50.10
|
|
Short Circuit Current: Isc [A]
|
18.68
|
18.75
|
18.81
|
18.87
|
18.93
|
|
Voltage at Maximum Power: Vmp [V]
|
41.37
|
41.53
|
41.69
|
41.86
|
42.02
|
|
Current at Maximum Power: Imp [A]
|
17.65
|
17.70
|
17.75
|
17.80
|
17.85
|
|
Module Efficiency: η [%]
|
23.5
|
23.7
|
23.8
|
24.0
|
24.1
|
* STC: Irradiance 1000W/㎡, Cell temperature 25℃, AM=1.5, Power measurement tolerance: ±3%
Electrical Characteristics (BNPI)
|
Maximum Power：Pmax [W]
|
805.9
|
811.5
|
817.1
|
822.5
|
828.2
|
|
Open Circuit Voltage：Voc [V]
|
49.55
|
49.65
|
49.80
|
49.95
|
50.10
|
|
Short Circuit Current：Isc [A]
|
20.62
|
20.70
|
20.77
|
20.83
|
20.90
|
|
Voltage at Maximum Power：Vmp [V]
|
41.37
|
41.53
|
41.69
|
41.86
|
42.02
|
|
Current at Maximum Power：Imp [A]
|
19.48
|
19.54
|
19.60
|
19.65
|
19.71
|
Why Choose Us
Our solar panels are mainly designed for energy storage and distributed photovoltaics, with our designers carefully crafting each product.
Advanced automated production equipment greatly improves the production efficiency and product yield of our photovoltaic panels.
Our workers carefully trim and inspect each semi-finished product to ensure that every subsequent product meets the required standards.
Our photovoltaic solar panels feature a high-quality ETFE coating on the surface to ensure durability and waterproofing, greatly extending the product lifespan.
Once the product is completed, it is portable and foldable. We provide a finished product to our customers for remote inspection and demonstration as per their request.
During the pandemic, we were able to guarantee shipping space and delivery time for our US customers thanks to our long-standing friendly cooperation with shipowners and freight forwarding agencies. We arranged shipments with great care and urgency.
